查询视图,条件无法完全下推

Viewed 11

在使用复杂语句时,特别是多表关联查询语句, 部分条件无法下推到表

视图语句为:

CREATE OR REPLACE VIEW dwd_simplified_view AS
WITH area_car AS (
    SELECT
        a1.dt,
        a1.hphm,
        a1.gbbm AS kkdwbh
    FROM
        dwd_dlyx_kk_pass_data a1
        LEFT JOIN (
            SELECT *
            FROM (
                SELECT *, row_number() OVER (PARTITION BY hphm, hpzl ORDER BY ccdjrq DESC) AS nums
                FROM dwd_wp_jdcjcxx_df
            ) a1
            WHERE a1.nums = 1
        ) a2 ON a1.hphm = a2.hphm AND a1.hpzl = a2.hpzl
)
SELECT
    area_car.dt,
    area_car.hphm,
    area_car.kkdwbh
FROM
    area_car
LEFT JOIN (
    SELECT
        a1.dt,
        a1.hphm,
        a1.gbbm AS kkdwbh
    FROM
        dwd_dlyx_kk_pass_data a1
        LEFT JOIN (
            SELECT *
            FROM (
                SELECT *, row_number() OVER (PARTITION BY hphm, hpzl ORDER BY ccdjrq DESC) AS nums
                FROM dwd_wp_jdcjcxx_df
            ) a1
            WHERE a1.nums = 1
        ) a2 ON a1.hphm = a2.hphm AND a1.hpzl = a2.hpzl
) additional_data ON area_car.hphm = additional_data.hphm;

dwd_dlyx_kk_pass_data 为分区表,
调用视图方法的语句为:select * from dwd_simplified_view where dt < '2025-05-01';

其中有一部分无法下推时间。有没有通用的方法,可以能够将视图的时间下推到语句中。若不行的话,有没有类似自定义函数,将时间传参的方式实现该部分逻辑。

具体的执行计划如下:

mysql> explain select * from dwd_simplified_view where dt < '2025-05-01';
+-----------------------------------------------------------------------------------------------------------                                                                                                  -----------------------------------------------------------------------------------+
| Explain String(Nereids Planner)                                                                                                                                                                                                                                                                |
+-----------------------------------------------------------------------------------------------------------                                                                                                  -----------------------------------------------------------------------------------+
| PLAN FRAGMENT 0
|   OUTPUT EXPRS:
|     dt[#372]
|     hphm[#373]
|     kkdwbh[#374]
|   PARTITION: UNPARTITIONED
|   HAS_COLO_PLAN_NODE: false
|   VRESULT SINK
|      MYSQL_PROTOCAL
|   19:VEXCHANGE
|      offset: 0
|      distribute expr lists: hphm[#373]
| PLAN FRAGMENT 1
|   PARTITION: HASH_PARTITIONED: hphm[#367]
|   HAS_COLO_PLAN_NODE: false
|   STREAM DATA SINK
|     EXCHANGE ID: 19
|     UNPARTITIONED
|   18:VHASH JOIN(1657)
|   |  join op: RIGHT OUTER JOIN(PARTITIONED)[]
|   |  equal join conjunct: (hphm[#367] = hphm[#185])
|   |  runtime filters: RF000[min_max] <- hphm[#185](114/128/1048576), RF001[bloom] <- hphm[#185](114/128/10                                                                                                  48576)                                                                             |
|   |  cardinality=2,230,874,521,638,496
|   |  vec output tuple id: 21
|   |  output tuple id: 21
|   |  vIntermediate tuple ids: 20
|   |  hash output slot ids: 184 185 186
|   |  final projections: dt[#369], hphm[#370], kkdwbh[#371]
|   |  final project output tuple id: 21
|   |  distribute expr lists: hphm[#367]
|   |  distribute expr lists: hphm[#185]
|   |
|   |----8:VEXCHANGE
|   |       offset: 0
|   |       distribute expr lists:
|   |
|   17:VEXCHANGE
|      offset: 0
|      distribute expr lists:
| PLAN FRAGMENT 2
|   PARTITION: RANDOM
|   HAS_COLO_PLAN_NODE: false
|   STREAM DATA SINK
|     EXCHANGE ID: 17
|     HASH_PARTITIONED: hphm[#367]
|   16:VHASH JOIN(1570)
|   |  join op: LEFT OUTER JOIN(BROADCAST)[]
|   |  equal join conjunct: (hphm[#361] = hphm[#341])
|   |  equal join conjunct: (hpzl[#362] = hpzl[#340])
|   |  cardinality=770,332,800
|   |  vec output tuple id: 19
|   |  output tuple id: 19
|   |  vIntermediate tuple ids: 18
|   |  hash output slot ids: 361
|   |  final projections: hphm[#363]
|   |  final project output tuple id: 19
|   |  distribute expr lists:
|   |  distribute expr lists:
|   |
|   |----14:VEXCHANGE
|   |       offset: 0
|   |       distribute expr lists: hphm[#341], hpzl[#340]
|   |
|   15:VOlapScanNode(1514)
|      TABLE: nbjg.dwd_dlyx_kk_pass_data(dwd_dlyx_kk_pass_data), PREAGGREGATION: ON
|      runtime filters: RF000[min_max] -> hphm[#348], RF001[bloom] -> hphm[#348]
|      partitions=15/62 (P_20250425,P_20250426,P_20250427,P_20250428,P_20250429,P_20250430,P_20250501,P_20250502,P_20250503,P_20250504,P_20250505,P_20250506,P_20250507,P_20250508,P_20250509)|
|      tablets=150/150, tabletList=60807,60811,60815 ...
|      cardinality=770332800, avgRowSize=0.0, numNodes=1
|      pushAggOp=NONE
|      final projections: hphm[#348], hpzl[#349]
|      final project output tuple id: 17
| PLAN FRAGMENT 3
|   PARTITION: HASH_PARTITIONED: hphm[#334], hpzl[#333]
|   HAS_COLO_PLAN_NODE: false
|   STREAM DATA SINK
|     EXCHANGE ID: 14
|     UNPARTITIONED
|   13:VANALYTIC(1550)
|   |  functions: [row_number()]
|   |  partition by: hphm[#337], hpzl[#336]
|   |  order by: ccdjrq[#338] DESC NULLS LAST
|   |  window: ROWS BETWEEN UNBOUNDED PRECEDING AND CURRENT ROW
|   |  predicates: (nums[#339] = 1)
|   |  final projections: hpzl[#336], hphm[#337]
|   |  final project output tuple id: 15
|   |  distribute expr lists: hphm[#337], hpzl[#336]
|   12:VSORT(1545)
|   |  order by: hphm[#337] ASC, hpzl[#336] ASC, ccdjrq[#338] DESC
|   |  offset: 0
|   |  distribute expr lists: hphm[#334], hpzl[#333]
|   11:VEXCHANGE
|      offset: 0
|      distribute expr lists:
| PLAN FRAGMENT 4
|   PARTITION: HASH_PARTITIONED: jdcxh[#187]
|   HAS_COLO_PLAN_NODE: false
|   STREAM DATA SINK
|     EXCHANGE ID: 11
|     HASH_PARTITIONED: hphm[#334], hpzl[#333]
|   10:VPartitionTopN(1535)
|   |  functions: row_number
|   |  partition by: hphm[#331], hpzl[#330]
|   |  order by: ccdjrq[#335] DESC
|   |  has global limit: false
|   |  partition limit: 1
|   |  partition topn phase: TWO_PHASE_LOCAL_PTOPN
|   |  distribute expr lists:
|   |
|   9:VOlapScanNode(1520)
|      TABLE: nbjg.dwd_wp_jdcjcxx_df(dwd_wp_jdcjcxx_df), PREAGGREGATION: ON
|      PREDICATES: (__DORIS_DELETE_SIGN__[#328] = 0)
|      partitions=1/1 (dwd_wp_jdcjcxx_df)
|      tablets=12/12, tabletList=41927,41931,41935 ...
|      cardinality=115, avgRowSize=0.0, numNodes=1
|      pushAggOp=NONE
|      final projections: hpzl[#188], hphm[#189], ccdjrq[#207]
|      final project output tuple id: 11
| PLAN FRAGMENT 5
|   PARTITION: RANDOM
|   HAS_COLO_PLAN_NODE: false
|   STREAM DATA SINK
|     EXCHANGE ID: 08
|     HASH_PARTITIONED: hphm[#185]
|   7:VHASH JOIN(1642)
|   |  join op: LEFT OUTER JOIN(BROADCAST)[]
|   |  equal join conjunct: (hphm[#176] = hphm[#154])
|   |  equal join conjunct: (hpzl[#174] = hpzl[#153])
|   |  cardinality=330,142,628
|   |  vec output tuple id: 9
|   |  output tuple id: 9
|   |  vIntermediate tuple ids: 8
|   |  hash output slot ids: 176 177 175
|   |  final projections: dt[#181], hphm[#180], kkdwbh[#179]
|   |  final project output tuple id: 9
|   |  distribute expr lists:
|   |  distribute expr lists:
|   |
|   |----5:VEXCHANGE
|   |       offset: 0
|   |       distribute expr lists: hphm[#154], hpzl[#153]
|   |

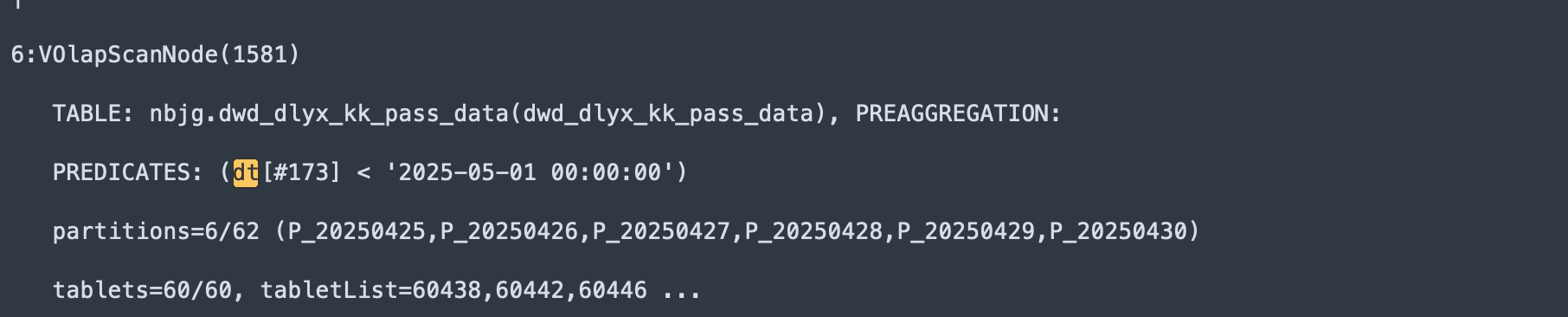

|   6:VOlapScanNode(1581)
|      TABLE: nbjg.dwd_dlyx_kk_pass_data(dwd_dlyx_kk_pass_data), PREAGGREGATION: ON
|      PREDICATES: (dt[#173] < '2025-05-01 00:00:00')
|      partitions=6/62 (P_20250425,P_20250426,P_20250427,P_20250428,P_20250429,P_20250430)
|      tablets=60/60, tabletList=60438,60442,60446 ...
|      cardinality=300124800, avgRowSize=0.0, numNodes=1
|      pushAggOp=NONE
|      final projections: hpzl[#162], gbbm[#156], hphm[#161], dt[#173]
|      final project output tuple id: 7
| PLAN FRAGMENT 6
|   PARTITION: HASH_PARTITIONED: hphm[#147], hpzl[#146]
|   HAS_COLO_PLAN_NODE: false
|   STREAM DATA SINK
|     EXCHANGE ID: 05
|     UNPARTITIONED
|   4:VANALYTIC(1622)
|   |  functions: [row_number()]
|   |  partition by: hphm[#150], hpzl[#149]
|   |  order by: ccdjrq[#151] DESC NULLS LAST
|   |  window: ROWS BETWEEN UNBOUNDED PRECEDING AND CURRENT ROW
|   |  predicates: (nums[#152] = 1)
|   |  final projections: hpzl[#149], hphm[#150]
|   |  final project output tuple id: 5
|   |  distribute expr lists: hphm[#150], hpzl[#149]
|   |
|   3:VSORT(1617)
|   |  order by: hphm[#150] ASC, hpzl[#149] ASC, ccdjrq[#151] DESC
|   |  offset: 0
|   |  distribute expr lists: hphm[#147], hpzl[#146]
|   |
|   2:VEXCHANGE
|      offset: 0
|      distribute expr lists:
| PLAN FRAGMENT 7
|   PARTITION: HASH_PARTITIONED: jdcxh[#0]
|   HAS_COLO_PLAN_NODE: false
|   STREAM DATA SINK
|     EXCHANGE ID: 02
|     HASH_PARTITIONED: hphm[#147], hpzl[#146]
|   1:VPartitionTopN(1607)
|   |  functions: row_number
|   |  partition by: hphm[#144], hpzl[#143]
|   |  order by: ccdjrq[#148] DESC
|   |  has global limit: false
|   |  partition limit: 1
|   |  partition topn phase: TWO_PHASE_LOCAL_PTOPN
|   |  distribute expr lists:
|   |
|   0:VOlapScanNode(1592)
|      TABLE: nbjg.dwd_wp_jdcjcxx_df(dwd_wp_jdcjcxx_df), PREAGGREGATION: ON
|      PREDICATES: (__DORIS_DELETE_SIGN__[#141] = 0)
|      partitions=1/1 (dwd_wp_jdcjcxx_df)
|      tablets=12/12, tabletList=41927,41931,41935 ...
|      cardinality=115, avgRowSize=0.0, numNodes=1
|      pushAggOp=NONE
|      final projections: hpzl[#1], hphm[#2], ccdjrq[#20]
|      final project output tuple id: 1
```
0 Answers
